装饰者模式

一、定义

动态的给一个对象添加一些额外的职责。装饰者模式提供一个弹性的继承替代方案来实现功能的扩展。

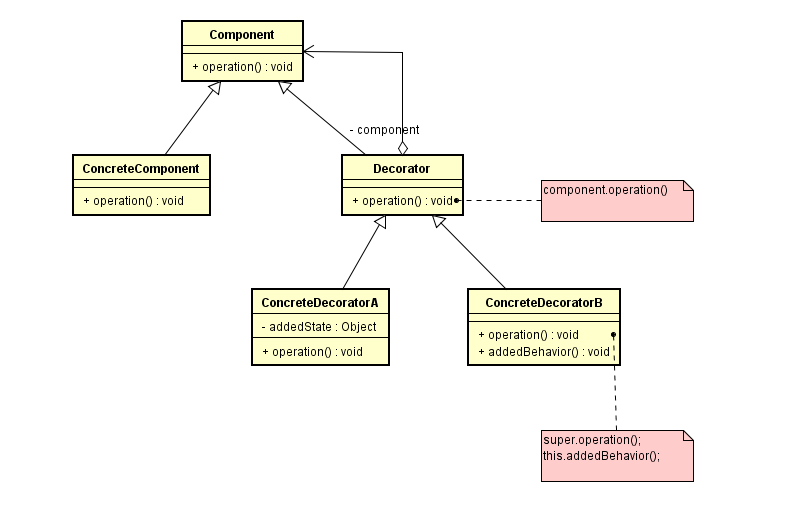

二、类图表示

三、实现

1、Component

package pattern.structual.decorator;

public abstract class Component {

	public abstract void operation();
}


package pattern.structual.decorator;

public class ConcreteComponent extends Component {

	@Override
	public void operation() {
		System.out.println("ConcreteComponent operation...");
	}

}

2、Decorator

• AbstractorDecorator

package pattern.structual.decorator;

public abstract class Decorator extends Component {

	protected Component component;

	public void setComponent(Component component){
		this.component = component;
	}

	@Override
	public void operation() {
		component.operation();
	}

}

• ConcreteDecorator

package pattern.structual.decorator;

public class ConcreteDecoratorA extends Decorator {

	private String addedState;

	@Override
	public void operation() {
		super.operation();
		addedState = "new state";
		System.out.println("DecoratorA added a new state...");
	}
}


package pattern.structual.decorator;

public class ConcreteDecoratorB extends Decorator {

	@Override
	public void operation() {
		super.operation();
		this.addedBehavior();
	}

	public void addedBehavior(){
		System.out.println("DecoratorB addedBehavior...");
	}
}

四、使用

package pattern.structual.decorator;

public class Client {

	public static void main(String[] args) {
		Component component = new ConcreteComponent();

		//使用ConcreteDecoratorA装饰
		Decorator decoratorA = new ConcreteDecoratorA();
		decoratorA.setComponent(component);
		decoratorA.operation();

		System.out.println();

		//使用ConcreteDecoratorB装饰
		Decorator decoratorB = new ConcreteDecoratorB();
		decoratorB.setComponent(component);
		decoratorB.operation();

		System.out.println();

		//先使用ConcreteDecoratorA装饰，再使用ConcreteDecoratorB装饰
		decoratorB.setComponent(decoratorA);
		decoratorB.operation();
	}
}

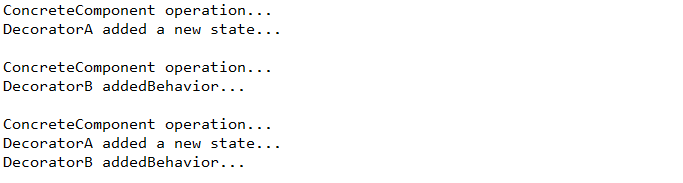

• 程序输出：

五、适用场合

• 在不影响其他对象的情况下，对某个现有对象动态的增加一个新职责或功能
• 当不能通过增加子类实现扩展时（有两种情况：使用继承方式会造成子类膨胀或类定义被隐藏不能生成子类）
